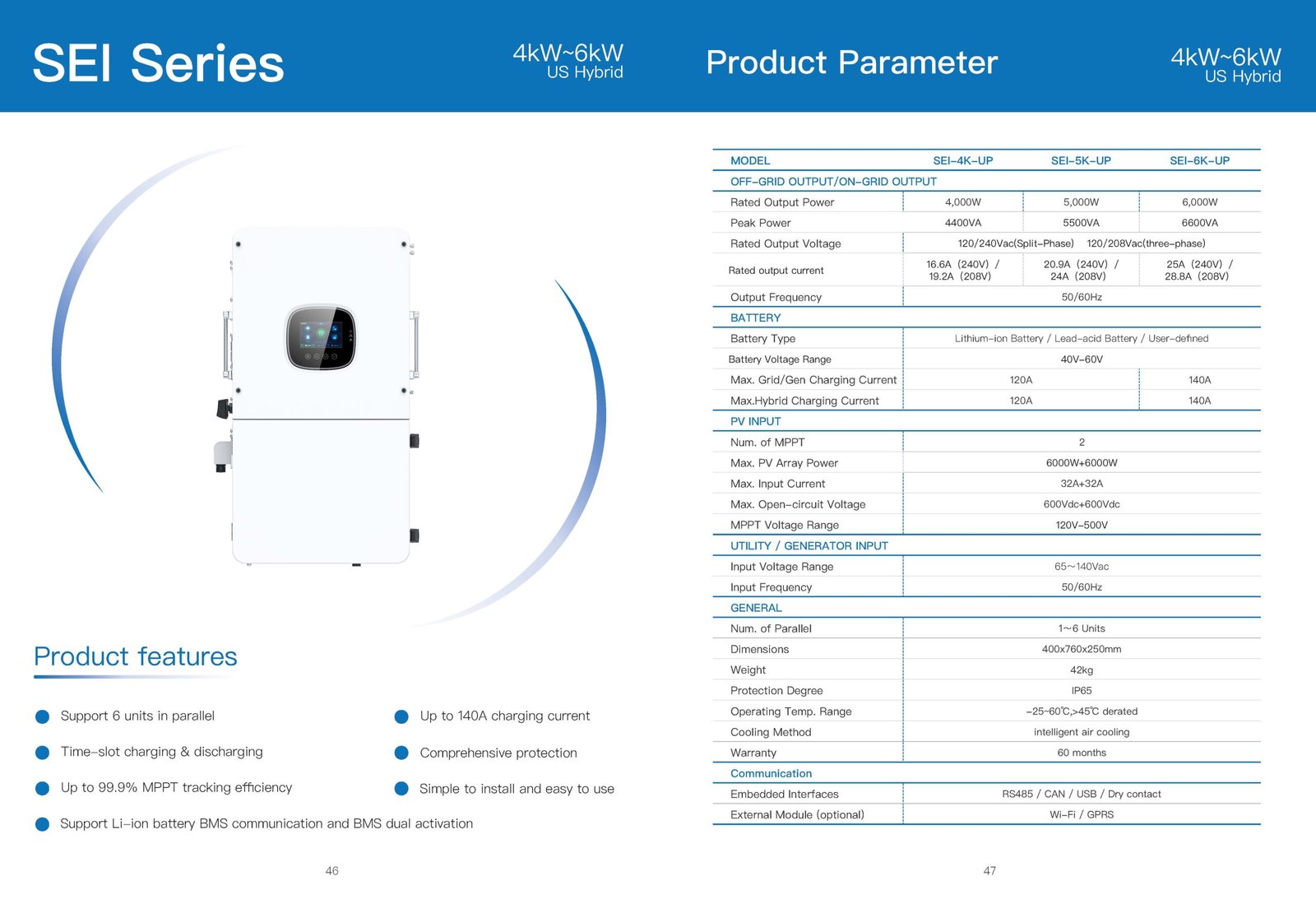

SRNE SEI Series — 4kW~6kW US Hybrid

Product Parameter

MODEL

OFF-GRID OUTPUT / ON-GRID OUTPUT

• Rated Output Power: 4,000W / 5,000W / 6,000W

• Peak Power: 4400VA / 5500VA / 6600VA

• Rated Output Voltage:

  • 120/240Vac (Split-Phase)

  • 120/208Vac (Three-phase)

• Rated Output Current:

  • 16.6A (240V) / 19.2A (208V)

  • 20.9A (240V) / 24A (208V)

  • 25A (240V) / 28.8A (208V)

• Output Frequency: 50/60Hz

BATTERY

• Battery Type: Lithium-ion / Lead-acid / User-defined

• Battery Voltage Range: 40–60V

• Max. Grid/Generator Charging Current: 120A / 140A

• Max. Hybrid Charging Current: 120A / 140A

PV INPUT

• Number of MPPT: 2

• Max. PV Array Power: 6000W + 6000W

• Max. Input Current: 32A + 32A

• Max. Open-circuit Voltage: 600Vdc + 600Vdc

• MPPT Voltage Range: 120–500V

UTILITY / GENERATOR INPUT

• Input Voltage Range: 65–140Vac

• Input Frequency: 50/60Hz

GENERAL

• Number of Parallel Units: 1–6 units

• Dimensions: 400 × 760 × 250 mm

• Weight: 42 kg

• Protection Degree: IP65

• Operating Temperature Range: -25°C to 60°C (>45°C derated)

• Cooling Method: Intelligent air cooling

• Warranty: 60 months

COMMUNICATION

• Embedded Interfaces: RS485 / CAN / USB / Dry contact

• External Module (Optional): Wi-Fi / GPRS
