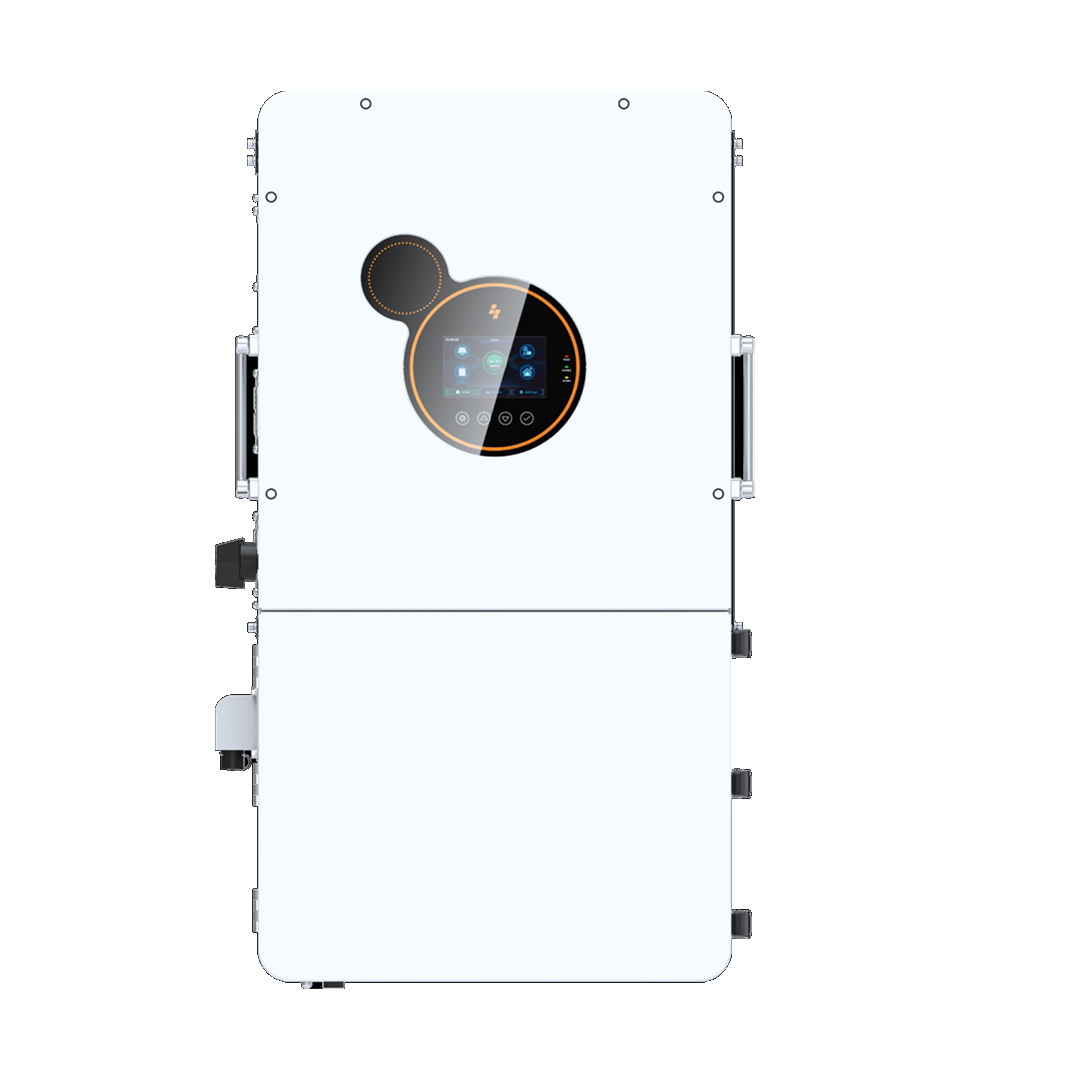

SRNE SEI Series – 8kW~12kW US Hybrid

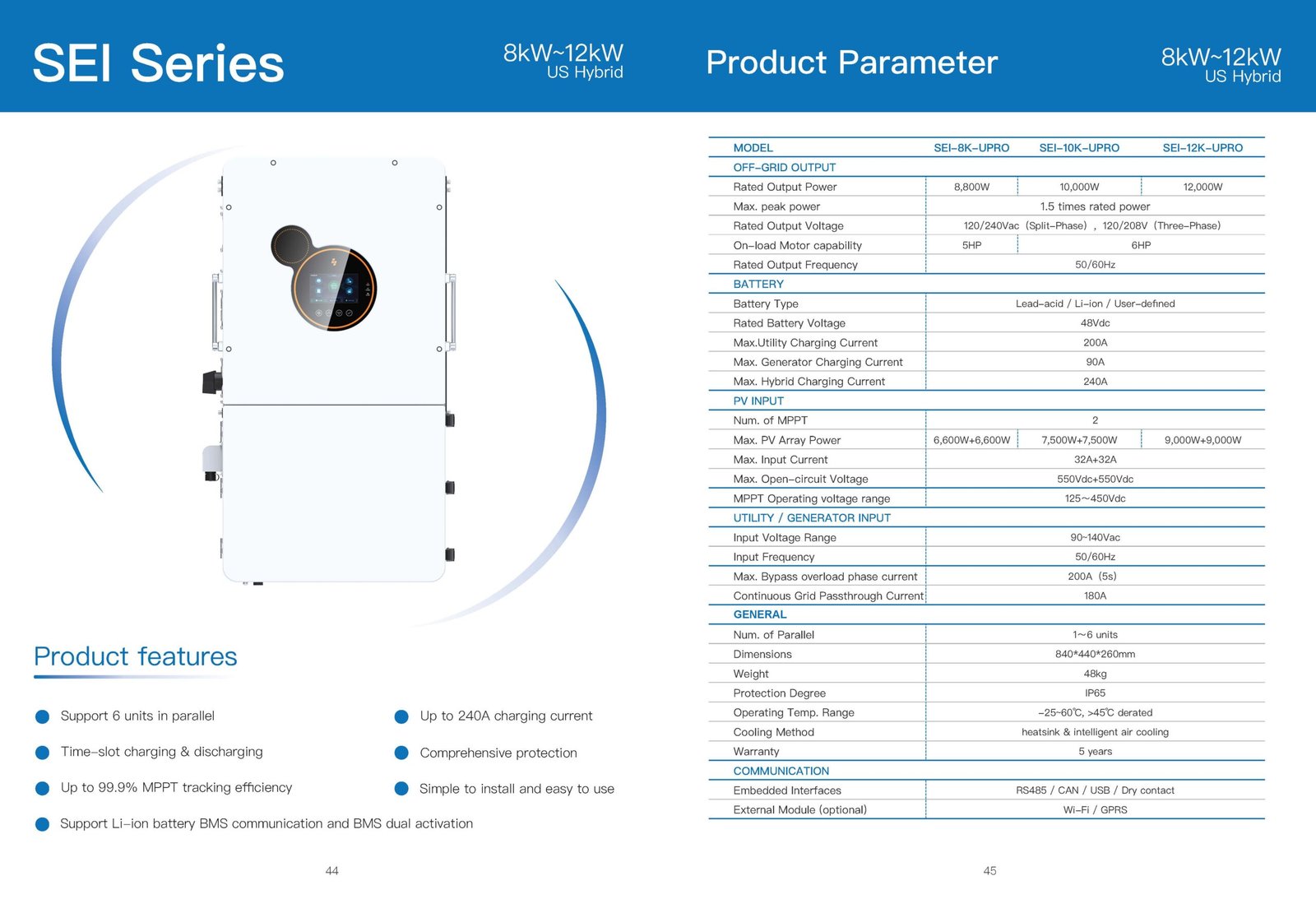

Product Parameter

MODEL

• SEI-8K-UPRO

• SEI-10K-UPRO

• SEI-12K-UPRO

---

OFF-GRID OUTPUT

• Rated Output Power

  • 8,800W | 10,000W | 12,000W

• Max. peak power

  • 1.5 times rated power

• Rated Output Voltage

  • 120/240Vac (Split-Phase), 120/208V (Three-Phase)

• On-load Motor capability

  • 5HP (8K / 10K)

  • 6HP (12K)

• Rated Output Frequency

  • 50/60Hz

---

BATTERY

• Battery Type

  • Lead-acid / Li-ion / User-defined

• Rated Battery Voltage

  • 48Vdc

• Max. Utility Charging Current

  • 200A

• Max. Generator Charging Current

  • 90A

• Max. Hybrid Charging Current

  • 240A

---

PV INPUT

• Num. of MPPT

  • 2

• Max. PV Array Power

  • 6,600W + 6,600W (8K)

  • 7,500W + 7,500W (10K)

  • 9,000W + 9,000W (12K)

• Max. Input Current

  • 32A + 32A

• Max. Open-circuit Voltage

  • 550Vdc + 550Vdc

• MPPT Operating Voltage Range

  • 125~450Vdc

---

UTILITY / GENERATOR INPUT

• Input Voltage Range

  • 90~140Vac

• Input Frequency

  • 50/60Hz

• Max. Bypass overload phase current

  • 200A (5s)

• Continuous Grid Passthrough Current

  • 180A

---

GENERAL

• Num. of Parallel

  • 1~6 units

• Dimensions

  • 840 × 440 × 260 mm

• Weight

  • 48kg

• Protection Degree

  • IP65

• Operating Temp. Range

  • -25~60°C, >45°C derated

• Cooling Method

  • Heatsink & intelligent air cooling

• Warranty

  • 5 years

---

COMMUNICATION

• Embedded Interfaces

  • RS485 / CAN / USB / Dry contact

• External Module (optional)

  • Wi-Fi / GPRS
