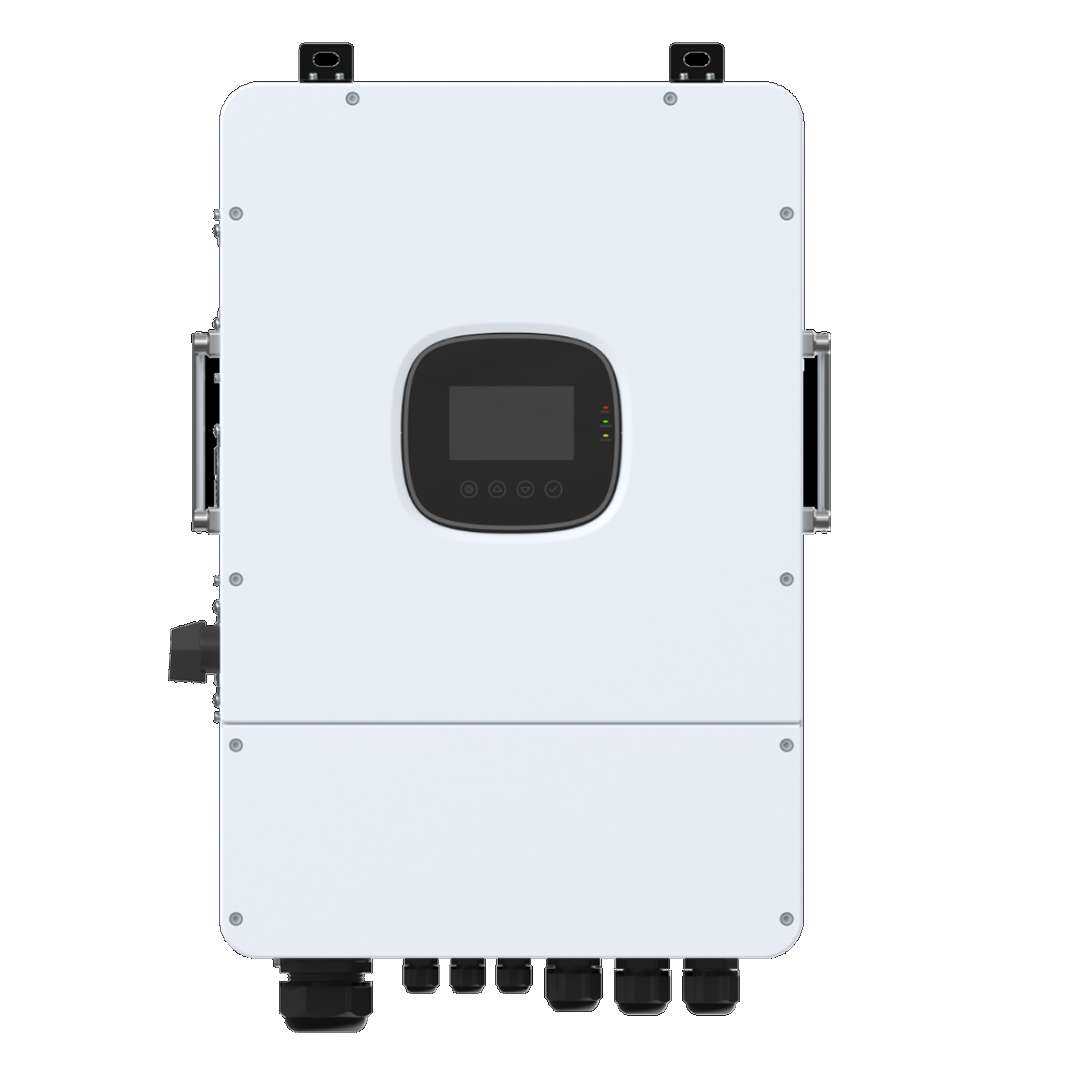

SRNE SEI Series – 8kW LV Single-Phase

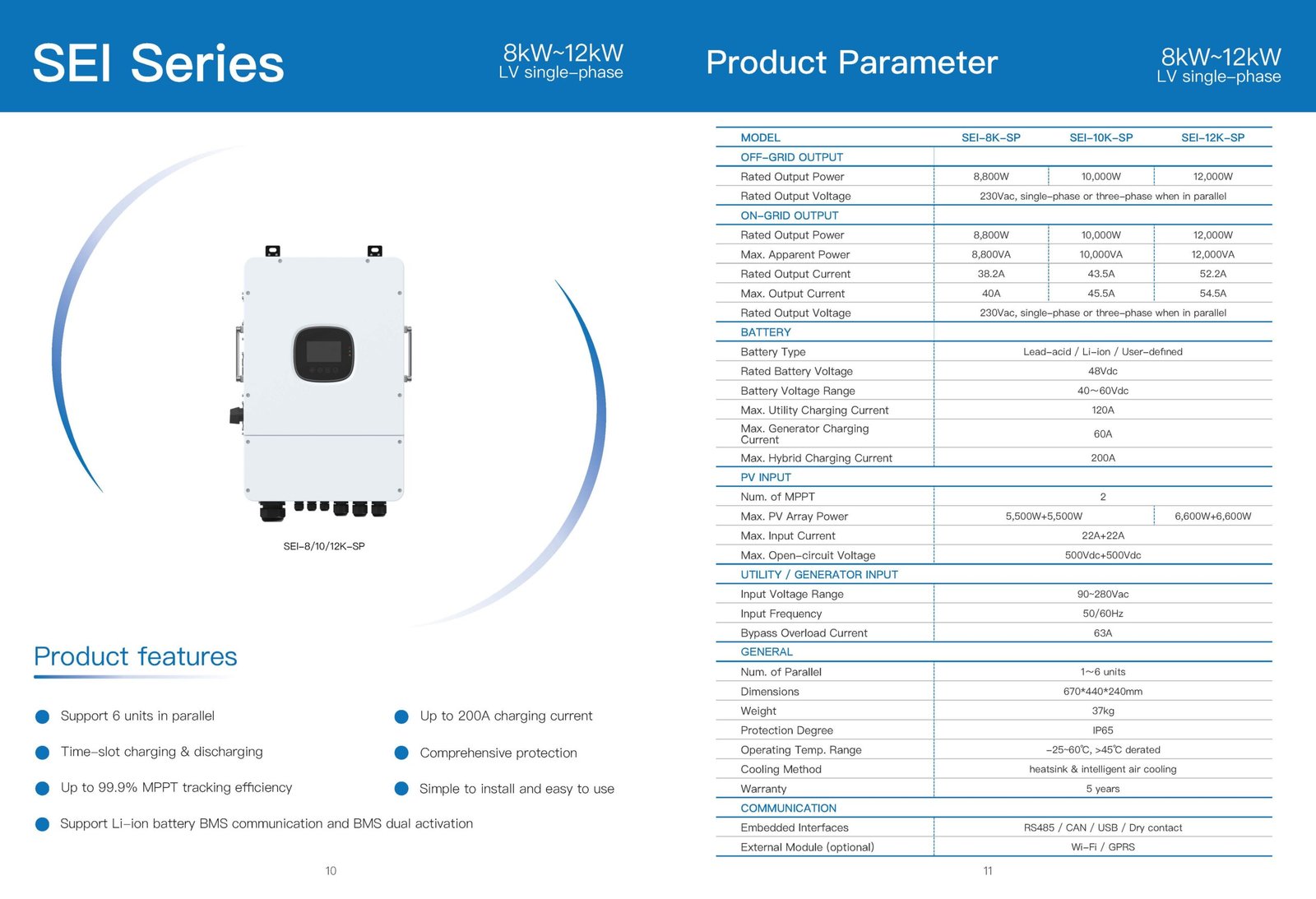

Product Parameter

MODEL

• SEI-8K-SPD

OFF-GRID OUTPUT

• Rated Output Power

  • 8,000W

• Rated Output Voltage

  • 230Vac, single-phase or three-phase when in parallel

ON-GRID OUTPUT

• Rated Output Power

  • 8,000W

• Max. Apparent Power

  • 8,800VA

• Rated Output Current

  • 36.4A

• Max. Output Current

  • /

• Rated Output Voltage

  • 230Vac, single-phase or three-phase when in parallel

BATTERY

• Battery Type

  • Lead-acid / Li-ion / User-defined

• Rated Battery Voltage

  • 48Vdc

• Battery Voltage Range

  • 40~60Vdc

• Max. Utility Charging Current

  • 160A

• Max. Generator Charging Current

  • 160A

• Max. Hybrid Charging Current

  • 190A

PV INPUT

• Num. of MPPT

  • 2

• Max. PV Array Power

  • 8,000W + 8,000W

• Max. Input Current

  • 32A + 32A

• Max. Open-circuit Voltage

  • 600Vdc + 600Vdc

UTILITY / GENERATOR INPUT

• Input Voltage Range

  • 90~280Vac

• Input Frequency

  • 50/60Hz

• Bypass Overload Current

  • 50A

GENERAL

• Num. of Parallel

  • 1~6 units

• Dimensions

  • 631.5 × 365 × 263 mm

• Weight

  • 33kg

• Protection Degree

  • IP65

• Operating Temp. Range

  • -25~60°C, >45°C derated

• Cooling Method

  • Heatsink & intelligent air cooling

• Warranty

  • 5 years

COMMUNICATION

• Embedded Interfaces

  • RS485 / CAN / USB / Dry contact

• External Module (optional)

  • Wi-Fi / GPRS
