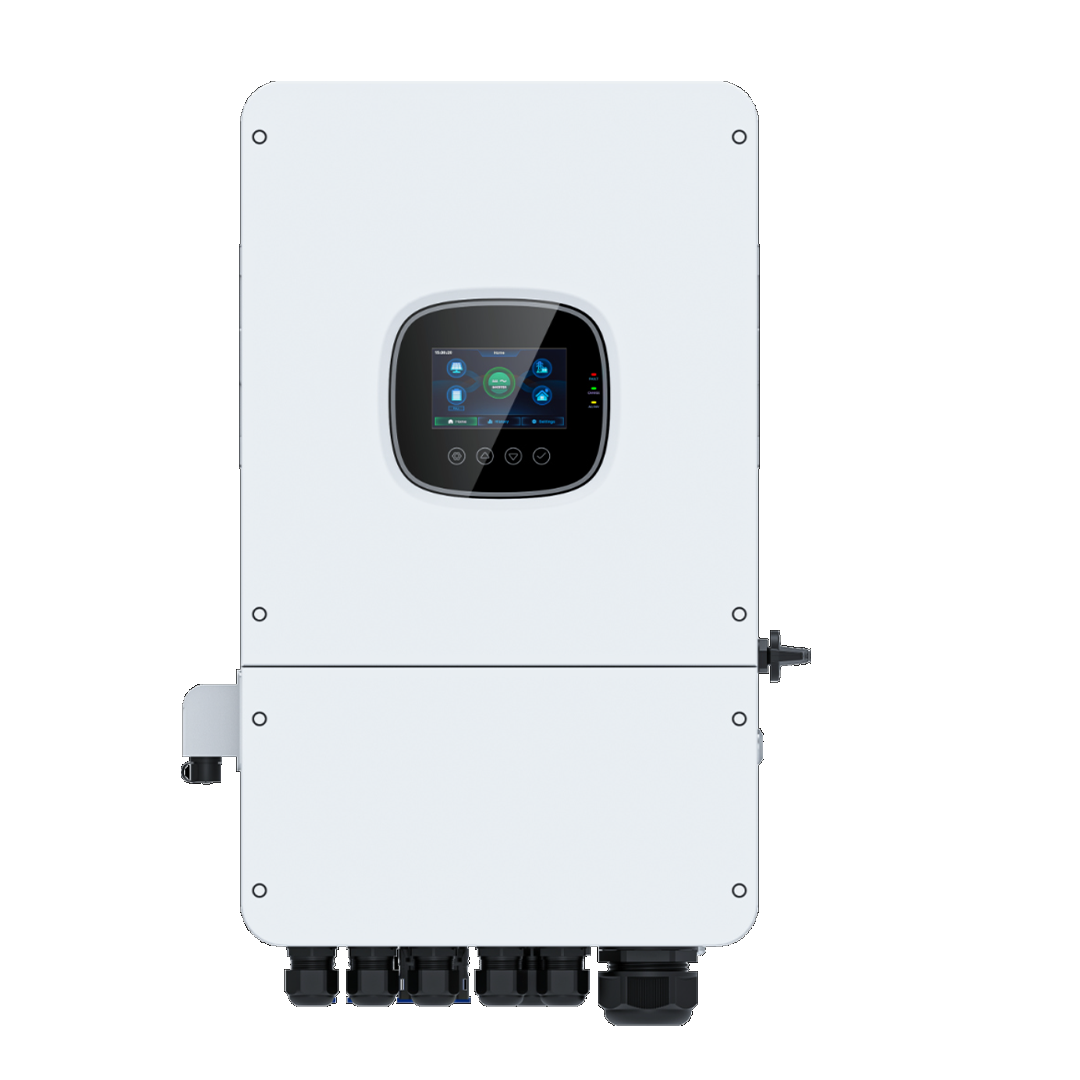

SRNE SEI Series – 8kW~12kW LV Single-Phase

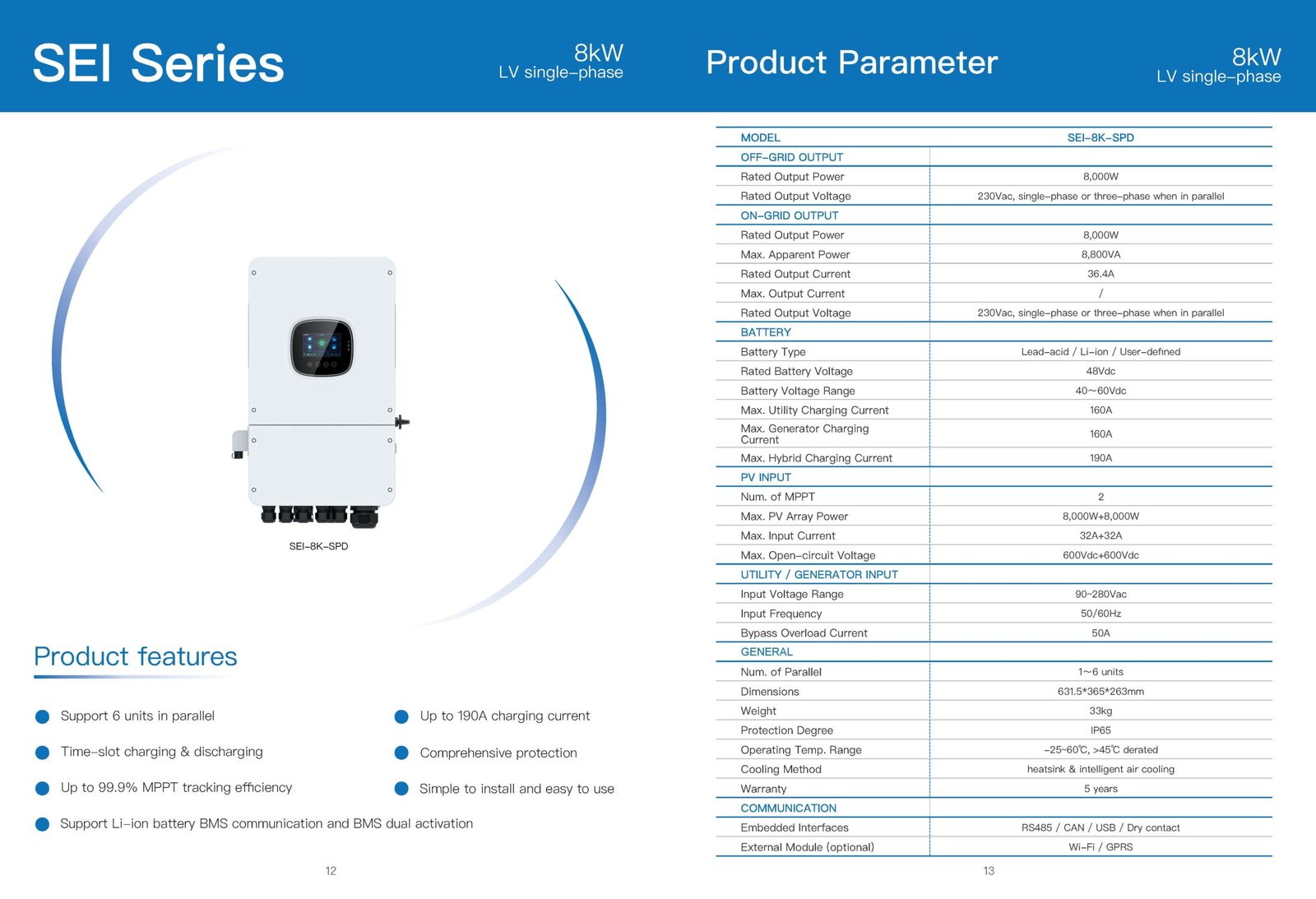

Product Parameter

MODEL

• SEI-8K-SP

• SEI-10K-SP

• SEI-12K-SP

---

OFF-GRID OUTPUT

• Rated Output Power

  • 8,800W | 10,000W | 12,000W

• Rated Output Voltage

  • 230Vac, single-phase or three-phase when in parallel

---

ON-GRID OUTPUT

• Rated Output Power

  • 8,800W | 10,000W | 12,000W

• Max. Apparent Power

  • 8,800VA | 10,000VA | 12,000VA

• Rated Output Current

  • 38.2A | 43.5A | 52.2A

• Max. Output Current

  • 40A | 45.5A | 54.5A

• Rated Output Voltage

  • 230Vac, single-phase or three-phase when in parallel

---

BATTERY

• Battery Type

  • Lead-acid / Li-ion / User-defined

• Rated Battery Voltage

  • 48Vdc

• Battery Voltage Range

  • 40~60Vdc

• Max. Utility Charging Current

  • 120A

• Max. Generator Charging Current

  • 60A

• Max. Hybrid Charging Current

  • 200A

---

PV INPUT

• Num. of MPPT

  • 2

• Max. PV Array Power

  • 5,500W + 5,500W (8K / 10K)

  • 6,600W + 6,600W (12K)

• Max. Input Current

  • 22A + 22A

• Max. Open-circuit Voltage

  • 500Vdc + 500Vdc

---

UTILITY / GENERATOR INPUT

• Input Voltage Range

  • 90~280Vac

• Input Frequency

  • 50/60Hz

• Bypass Overload Current

  • 63A

---

GENERAL

• Num. of Parallel

  • 1~6 units

• Dimensions

  • 670 × 440 × 240 mm

• Weight

  • 37kg

• Protection Degree

  • IP65

• Operating Temp. Range

  • -25~60°C, >45°C derated

• Cooling Method

  • Heatsink & intelligent air cooling

• Warranty

  • 5 years

---

COMMUNICATION

• Embedded Interfaces

  • RS485 / CAN / USB / Dry contact

• External Module (optional)

  • Wi-Fi / GPRS
